Instructions Earpiece Nano V7 Vip Pro UltraMini

Table of Contents

1 Instructions Earpiece Nano V7 Vip Pro UltraMini

What is a Nano Earpiece?

A nano earpiece is a auricular very small wireless which is inserted into the ear, remaining completely hidden. This type of hidden headphones are usually used for cheating in exams, use in presentations, espionage… The Nano Earpiece is the most popular model and one of the best sellers, but its operation can be complex without a guide.

What is a Vip Pro UltraMini Earpiece?

A vip pro ultramini earpiece is a auricular cordless with reduced size of only 1,08×0,68cm which is inserted into the ear, remaining hidden. This type of hidden headphones are usually used for cheating in exams, use in presentations, espionage… The Vip Pro UltraMini Earpiece is the smallest of the vip pro earpieces and one of the best sellers due to its simple operation.

How does the Nano Earpiece and Vip Pro UltraMini work?

The two types of earpieces work using technology electromagnetic induction. The inductor collar generates an inductive wave that will cause a vibration in the earpieces, resulting in the sound. Thanks to induction technology we can use hidden earpieces with a very small size and resistant to inhibitors.

Is the Nano Earpiece and Vip Pro UltraMini Safe?

Yes, the two penguins they are completely safe. Both of them they work because they react to electromagnetic induction emitted by the induction collar making sound. He nano earpiece does not have any electrical circuitry and with the vibration caused it generates the sound. ANDThe vip pro ultramini earpiece requires a battery to amplify the induction received by the collar.

You can find more information in the section on security and compliance of the product located at the end of the web.

Technical characteristics

This model includes two models of earpieces, the nano and the vip pro ultramini. Each model best fits a type of situation.

El nano earpiece has a size of 3mm and vip pro ultramini 1,08×0,68cm. The two earpieces adapt to the ear, remaining totally hidden.

The Nano V7 induction collar integrates a rechargeable battery inside. This battery can be charged at 100% in approximately 1 hour.

The inducing collar emits inductive waves to the earpiece. He nano earpiece does not require charging and the vip pro ultramini requires a battery with 4 hours of autonomy.

The Nano V7 induction collar requires a SIM card for phone calls.

The autonomy of the collar is approximately 4 hours depending on volume. The induction collar must be turned off when not in use and while charging.

Kit Contents

1 – Puller Magnet

2 – Nano Earpiece Extractor Bar

3 – Nano earpieces (2 magnetic units)

4 – Nano V7 Inductor Collar

5 – USB charging cable

6 – Vip Pro UltraMini earpiece

7 – 2 Batteries 379/SR521SW

8 – SIM card adapters

9 – Vip Pro UltraMini Earpiece Extractor Bar

Instructions

This penguin model It has a complex operation and is It is very important that you follow the steps indicated in the instructions.

Step 0 - Original Product PingaOculto

Check that it is a original product of PingaOculto checking that the brand that appears on the cards included with the product is the same as the one in the image.

If you have doubts about whether the product is original, you can contact us by attaching an image and we will verify it. Contact us via: WhatsApp +34 644 098 320 o Email.

Step 1 - Remove SIM PIN Code

To use the SIM card with the Kit it is need to temporarily remove the SIM pin code. You can find the setting on your mobile in security, privacy or similar settings. If you don't find the option, search in google: "remove sim card pin code + mobile model/brand".

Step 2 - SIM Card Insertion and Power On

The choke collar is shipped with little or no charge, It is recommended to charge it before its first use. (See Step 7)

Introducing a SIM card (No MicroSIM or NanoSIM) according orientation that appears in the image. If required, use included adapter with your microSIM or NanoSIM card and remember never insert the adapter without a card inside, since it will damage the pins. The SIM will be correctly inserted when you hear a click. For extract it push SIM card in until you hear a click. You can use the included clip.

Then turn on the Nano V7 inductor collar holding down the ON/OFF button Until appears a red led. Wait approximately 10 seconds for it to start.

Step 3 - Earpiece Type

Two types of earpiece are included in this model, being able to choose the one you prefer according to the situation. The Nano Penguin offers little volume and can only be used in noise-free environments like exams or libraries. The Vip Pro UltraMini Earpiece offers more volume and can be used in environments with or without noise.

Select the earpiece model you prefer to see the configuration steps

Step 4 - Using the Vip Pro UltraMini Earpiece Kit

ATTENTION - To remove the vip pro ultramini earpiece from the ear it is necessary that the battery is inserted in the earpiece.

You should NEVER insert the vip pro ultramini earpiece into your ear without first inserting the battery on the Earpiece or the extractor bar will not work.

Step 4.1 - Stack Introduction

Unscrew the black cap from the earpiece and insert the stack with the positive pole facing upwards. Then screw the cap back on checking let it remain correctly screwed.

The battery begins to be consumed from the moment it is inserted on the earpiece and should withdraw if not to be used to avoid downloading. The model of the battery that the earpiece requires is 379-SR521SW.

Step 4.2 - Earpiece Operation Check

This sound similar to an untuned radio It is normal in all Vip Pro Earpieces. It is due to the constant amplification of the inductive waves emitted by the inductive collar. this sound decreases when playing a recording or call and when the battery charge is getting low

It is not necessary to introduce the earpiece very much in the ear to hide it because the ear canal has a ascending shape.

Bring the earpiece to your ear and check that you can hear a sound similar to an untuned radio. This sound indicates that you are powered on and working properly.

⚠ If the sound is very loud, it can be heard without the earpiece in your ear, unscrew the cap and check that the battery is oriented with the positive pole + facing up and screw the cap back on carefully. If the lid or the battery are not aligned it will make this noise.

⚠ If you cannot hear the sound similar to an untuned radio, check that the battery is correctly inserted with the positive pole + facing up and screw the cover back on carefully. If you have left the battery inserted for a long time, it will be dead and you will have to use the other battery included in the kit or a new one to get it working again.

Step 4.3 - Kit Placement

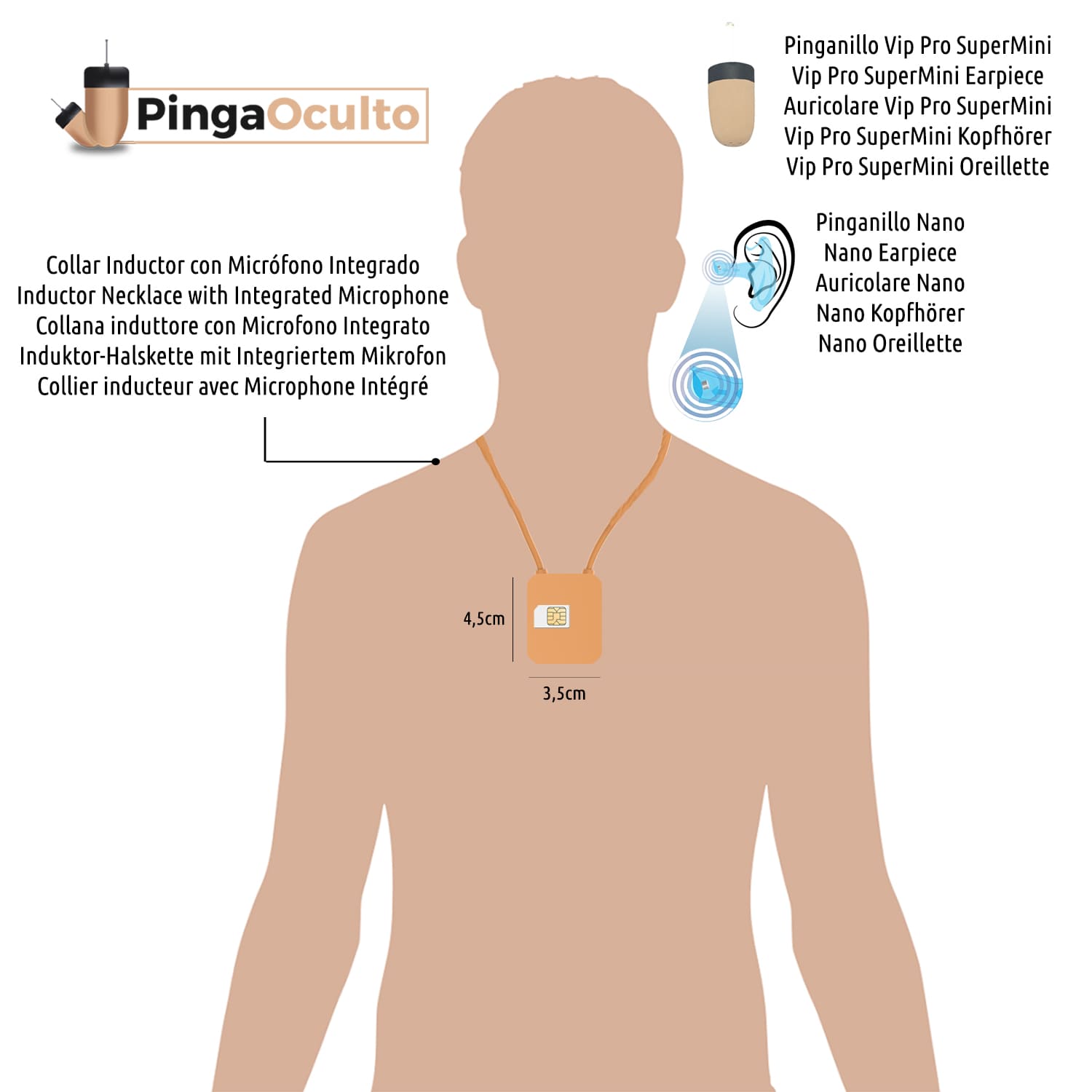

Place the Kit on the body as it appears in the image, remembering that the induction collar should always be on the neck under clothing so that the earpiece receives the sound.

Call from a mobile to the phone number of the SIM card and when it is answered automatically, increase the volume by pressing the + button of the induction collar.

For more security it is recommended to fix the induction collar with cloth or plastic tape to your skin so that it does not move during use. For repeated use you can even sew it to sweatshirts or jackets. Remember that the Induction Collar is not washable.

If the call is not heard by the earpiece, but you do hear the sound of the radio without tuning, check that the induction collar is on the neck and with the volume at maximum. If you need more help contact us: WhatsApp +34 644 098 320 o Email.

If you cannot hear the sound similar to an untuned radio, check that the battery is inserted correctly with the positive + side facing up and screw the cap back on carefully. If you have left the battery inserted for a long time, it will be dead and you will have to use the other battery included in the kit or a new one to get it working again.

You are now done configuring the earpiece vip pro ultra mini. You can follow with instructions in:

Step 5 - Using the Nano Earpiece Kit

This penguin model It has a complex operation and is It is very important that you follow the steps indicated in the instructions.

Step 5.1 - Kit Parts

Extractor Bar, Extractor Magnet and Earpieces

The penguins (in the image indicated by the number 3) are the two smallest pieces and should part with the nail. You can find them in the Kit in a bag. Also included are extractor bar (2 in the picture) and the puller magnet (1 in the image).

Step 5.2 - Test Function

Place together the Extractor Magnet and the two earpieces and place them in contact with the inductor collar, which must be rolled as in the picture. The extractor magnet, being also made of a piezoelectric material, reacts to inductive waves in the same way as the earpieces, vibrating and causing the sound, for this reason we will use it together with the earpieces to carry out the test.

The collar automatically answers the call after a few seconds.

Call from a mobile phone number SIM card y turn up the volume with the + button. Bring your ear closer to the extractor magnet and to the earpieces that are in contact with the induction collar and check if it is heard or vibrates when speaking from the mobile making the call.

Si vibrate and/or can be heard the kit It's working correctly.

If you do not hear the call from the earpiece, check that the induction collar is attached to the extractor magnet + earpieces, that you have called the correct number and that the volume is at maximum. If it does not work, try another SIM, check that it has a line and that the SIM card does not have a code. Also try performing a full battery charge. If it still doesn't work, repeat the steps with another SIM card. If you need more help contact us: WhatsApp +34 644 098 320 o Email.

Step 5.3 - Introducing Nano Earpiece

This step It is the most complex and may require several attempts to achieve the correct entry.. Si DO NOT enter it correctly you will hear low or not at all

Recommended For a correct introduction of the earpiece, keep the ear as clean as possible. We recommend using before introducing it swabs and/or spray for ear cleaning

Enter first a penguin (only one of the two that appear in the image indicated by a 3) in the left ear (we hear better through the left ear than through the right) through the following procedure:

Turn your head 90º so that the left ear where we are going to insert the earpiece is facing upwards.
Then drop the earpiece into your ear (You should never try to insert the earpiece with a cotton swab or similar, since it will not be correctly inserted).
keeping the same position with your head turned, shake your head and make circular movements until you notice the sensation of a drop of water falling into the ear and/or the clogged ear.

It may be necessary to spread this step several times

For check that the earpiece has been correctly inserted, put your hand to your ear (so that the earpiece does not fall to the ground) and turn your head to the opposite side. If the earpiece comes out of your ear easily when turning the head is that it has NOT been entered correctly. You must repeat the introduction steps.

also can check if it is correctly inserted by verifying that another person does not see the earpiece in the ear. If you can see it, DO NOT it is well introduced.

Tip: There are times when The earpiece just needs a little push to be correctly entered. If so, place the extractor magnet behind your ear, close to the neck. You will notice how the earpiece moves and you can finish placing it.

Tip 2: There are certain people who accumulate more amount of earwax, especially in the inner part of the ear, causing more difficult to introduce the earpiece. Remember clean the ear with Cleaning Sprays and sticks for the ears. Usually you will only need practice more to enter it correctly. If you can't enter it it is recommended that you have a ear cleaning to remove wax plugs.

If you can't enter it, contact us to help you: WhatsApp +34 644 098 320 o Email.

Step 5.4 - Kit Placement and Volume Adjustment

When the earpiece has been correctly inserted in the left ear, place the Kit as it appears in the image, remembering that the induction collar should always be on the neck under clothing so that the earpiece receives the sound.

Call from a mobile to the phone number of the SIM card and when it is answered automatically, increase the volume by pressing the + button of the induction collar. Check if the volume it provides is enough a penguin (sufficient in most cases) if we have inserted the earpiece correctly, if the volume is maximum, the collar has enough charge and is located on the neck).

If you hear very low, Also insert the other earpiece into the right ear.

For increase the volume of the neckloop (different volume than mobile) hold down the + button of the Nano V7 while the earpiece is on the left ear and the neckloop on the neck. When you hear a whistle means that the volume is at maximum* on the necklace.

(A single earpiece in the left ear is recommended, since when trying to insert one in each ear, the first one will be misplaced when introducing the second one). (It is VERY likely that if we do not hear well with an earpiece in the left ear it is because we have not inserted the earpiece correctly, the volume is not the maximum in the collar, the neckloop does not have enough charge or it is not in the neck).

*The volume to the maximum in the inducer collar drastically reduces the autonomy. You must adjust the volume to the maximum on the mobile and to the minimum audible (usually 50-70%) on the neckloop (you can decrease the volume by holding down the volume – button and increase it by holding down the + button).

Step 6 - Multifunction, Microphone and Volume Buttons

You can use this device by phone call. It includes integrated microphone on the necklace.

The collar automatically answers the call after a few seconds.

The operation of the buttons is:

ON / OFF: On off. (Hold down until the led turns on/off)
SOS/Reset: Call cut and shutdown.
, Volume Up/Down.

To increase autonomy it is recommended DO NOT max out the volume on the Nano V7. The optimum volume is 50-70%.

Step 7 - Earpiece, Battery and Battery Removal

Remember to turn off the neckloop while not in use and while charging

La autonomy of the Nano V7 device is approximately 4 hours.

to load it connect it to the mains with the USB cable from the Kit. The estimated time of charge is 1-1,5 hours. The device is fully charged when the blue light is solid while its charging. Remember to check that the Nano V7 is turned off while charging.

Step 7.1 - Removing the Nano Earpiece

remove the earpiece approaching the extractor bar (indicated in the image with a 2) with puller magnet (indicated with a 1) at its base to the ear as you can see in the first image.

Another VERY effective extraction method es hold with one finger the puller magnet inside the ear and shake your head while keeping it rotated as in the second image. It can be hard to remove the first few times, but after several attempts it will succeed.

As well the earpiece may have already been removed and fallen to the ground, check if it is still in your ear by connecting the Kit and checking if you hear when playing a song at maximum volume.

If you cannot extract it, contact us to help you: WhatsApp +34 644 098 320 o Email.

It is recommended to clean the earpiece with water or alcohol, the extractor magnet and the extractor bar before and after each use for better hygiene.

Finally, remember to turn off the collar inductor to prevent discharge holding down the A button until a red light appears.

Step 7.2 - Removing the Vip Pro UltraMini Earpiece

Remove the earpiece by inserting the removal bar into your ear. Remember that this is magnetized to the battery, so You should never insert the earpiece into your ear without first inserting the battery.

Finally, remember to disconnect the battery when you finish using the earpiece so it doesn't download.

⚠ If you can't extract it, contact us to help you: WhatsApp +34 644 098 320 o Email.

Can check the VideoTutorial along with instructions to better understand how the earpiece works:

If you have questions, don't hesitate to contact us! 😉

Frequent Problems

the penguins can be complex products when putting them into operation. Check below the nano v7 earpiece frequent problems vip pro ultra mini.

1 - Does not establish the call with the Collar

It can be due to several reasons. Perform the following checks:

Check that the SIM card does not have a PIN. You can check it by entering it in your mobile and restarting the mobile. If it asks for the SIM pin on ignition you should remove it. To use the SIM card with the Kit it is need to temporarily remove the SIM pin code. You can find the setting on your mobile in security, privacy or similar settings. If you don't find the option, search in google: "remove sim card pin code + mobile model/brand".
Check that you have inserted the SIM card correctly and heard the click when entering it.
Check that the SIM card can make or receive calls.
Verify that the neckloop has a charge and is turned on.

2 - Doesn't work

Nano earpieces work because of the material they are made of, a piezoelectric material, and not due to any internal electronics in the earpieces. For this reason it is impossible for nano earpieces not to work and The problem will be the inductor collar or the mobile. Follow the steps and tests indicated in the next section (3 – I can't hear anything or very low).

Si vip pro ultramini earpiece does not work follow the checks below:

Check that the battery has charge. if he has left her inserted into the earpiece for a long period of time, it will be discharged and you should use a new battery.
Unscrew the black cap from the earpiece and insert the stack with the positive pole facing upwards.
Screw the cap back on checking let it remain correctly screwed.
If you hear the sound similar to an untuned radio by putting the earpiece in your ear with the battery inserted, the earpiece is working and the problem will be another. Follow the steps indicated in the next section (3 – I can't hear anything or very low).

The battery begins to be consumed from the moment it is inserted in the earpiece and must be removed if it is not going to be used to avoid its discharge. The model of the battery that the earpiece requires is 379-SR521SW.

3 - I can't hear anything or very low

This is one of the most common problems in the nano earpieces. exist several possible reasons for which you hear nothing or very little. We are going to carry out a series of tests:

With which of the two earpieces are you experiencing the problem?

Extractor Bar, Extractor Magnet and Earpieces

Check that you have separated the earpieces (indicated in the image with the number 3), which are the two smallest pieces. You can find them in an accessory bag in the kit.

Then turn on the Nano V7 inductor collar holding down the ON/OFF button Until appears a red led. Wait approximately 10 seconds for it to start.

The collar automatically answers the call after a few seconds.

Si vibrate and/or can be heard the kit It's working correctly.

If in the previous step when carrying out the test you have noticed how the extractor magnet together with the earpieces vibrate or sound, the kit is working correctly and the problem is:

El inductor collar has no charge or has low charge.
El induction collar was not on the neck while being tested with the earpiece in the ear.
El inducer collar volume is low.
The earpiece has not been correctly inserted. (The MOST likely option). Follow the earpiece input steps again:

Turn your head 90º so that the left ear where we are going to insert the earpiece is facing upwards.
Then drop the earpiece into your ear (You should never try to insert the earpiece with a cotton swab or similar, since it will not be correctly inserted).
keeping the same position with your head turned, shake your head and make circular movements until you notice the sensation of a drop of water falling into the ear and/or the clogged ear.

It may be necessary to spread this step several times

also can check if it is correctly inserted by verifying that another person does not see the earpiece in the ear. If you can see it, DO NOT it is well introduced.

If you can't enter it, contact us to help you: WhatsApp +34 644 098 320 o Email.

If you hear very low, Also insert the other earpiece into the right ear.

Check that the battery has charge. if he has left her inserted into the earpiece for a long period of time, it will be discharged and you should use a new battery.
Unscrew the black cap from the earpiece and insert the stack with the positive pole facing upwards.
Screw the cap back on checking let it remain correctly screwed.

If you hear the sound similar to an untuned radio by putting the earpiece in your ear with the battery inserted, the earpiece is working

Place the induction collar on the neck and the earpiece in the ear and checking that the SIM card is inserted call the phone number of the inserted SIM. As well turn up the volume all the way on the neckloop holding down the + button of the necklace.

The battery begins to be consumed from the moment it is inserted in the earpiece and must be removed if it is not going to be used to avoid its discharge. The model of the stack is 379-SR521SW.

4 - I only hear out of one ear / earpiece

If one earpiece works, the other works too. This is because the earpieces work because of the material they are made of, a piezoelectric material, and not due to any internal electronics in the earpieces. The material reacts to the inductive waves of the induction collar by vibrating and making sound.

Most likely, the earpiece has not been correctly inserted into the earOr this let's hear more for one than for another (normally we hear more through the left ear than through the right).

If the volume obtained by the earpiece in one ear is sufficient, it is recommended to use it with a single earpiece and save the other spare.

5 - The button does not work or does not work as it should

The collar automatically answers the call after a few seconds.

The operation of the buttons is:

ON / OFF: On off. (Hold down until the led turns on/off)
SOS/Reset: Call cut and shutdown.
, Volume Up/Down.

To increase autonomy it is recommended DO NOT max out the volume on the Nano V7. The optimum volume is 50-70%.

6 - The integrated microphone does not work

The built-in microphone works like a handsfree for phone calls.

Recommended check that it has not been clogged with clothing and try to do the call in loudspeaker mode with another mobile.

7 - I can't extract the earpiece

You may have to try several times until it is successfully removed.

remove the earpiece approaching the extractor bar (indicated in the image with a 2) with puller magnet (indicated with a 1) at its base to the ear as you can see in the picture.

As well the earpiece may have already been removed and fallen to the ground, check if it is still in your ear by connecting the Kit and checking if you hear when playing a song at maximum volume.

⚠ If you can't extract it, contact us to help you: WhatsApp +34 644 098 320 o Email.

Finally, remember to disconnect the battery when you finish using the earpiece so it doesn't download.

⚠ If you can't extract it, contact us to help you: WhatsApp +34 644 098 320 o Email.

8 - The Choke Collar has stopped working

Most likely, has stayed on and the battery has been depleted. Perform a full charge. It is also possible that the volume has gone down, you must upload it by holding the + button of the Nano V7 while it is turned on and connected to your mobile.

If you have already verified that you have a charge and that the volume of your mobile and the Nano V7 is maximum follow the steps indicated in section 3 -I can't hear anything or very low of frequent problems.

If the Kit does not work, contact us to help you: WhatsApp +34 644 098 320 o Email.

9 - Low Autonomy

🔋❗ The volume to the maximum in the induction collar drastically reduces autonomy. You must adjust the costumes (typically 50-70%) on the choke collar (you can decrease the volume holding down the button – volume and increase it by holding down the + button).

Can check the VideoTutorial along with instructions to better understand how the earpiece works:

If you have questions, don't hesitate to contact us! 😉

Security and Compliance

Below is the important product information in relation to the security and compliance that guarantee proper and safe use of the product:

⚠ FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN FIRE, ELECTRIC SHOCK, OR OTHER DAMAGE OR INJURY.

⚠ WARNING: Do not use or store the product near other electronic equipment because the magnetic field of adjacent electrical equipment will seriously damage or interfere with the product. Also do not use this product if you have impaired hearing which may be affected, if you use hearing aids, or if you are using a pacemaker or any electronic medical device.

Product specifications:

Model Name: Nano V7 + Vip Pro UltraMini

Model Number: N-20

Product Identifier: B09W1QKS6K

Product battery: Integrated Lithium-Ion type with 500 mAh capacity

Electrical Rating: Power: 100-240V 50/60Hz 0.15A

Batteries Included: 2 x Silver Oxide Batteries type 379-SR521SW

Operating temperature: 0 to 35ºC

Product Use: Do not expose your device or adapter to liquids. If your device or adapter gets wet, carefully unplug all cables without getting your hands wet, and wait for the device and adapter to dry completely before plugging them back in. Do not try to dry your device or adapter with an external heat source, such as a microwave oven or blow dryer. If the device or adapter is damaged, stop using it immediately. Use only the supplied accessories to power your device. To avoid the risk of electric shock, do not touch the device or the cables connected to it during a thunderstorm. The cables and/or adapters are only designed for indoor use.

Terms of use: PingOc Now SL is not responsible for the fraudulent or erroneous use of the product due to the lack of understanding or reading of the information in the instructions and precautions. This product is not a toy and must not be used contrary to current applicable laws. If you have any questions you can contact us before using the product.

For EU customers: Hereby, PingaOculto, declares that the type of radio equipment is in accordance with Directive 2014/53/EU.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

FCC Compliance: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet the general RF exposure requirement. The device can be used in portable exposure conditions without restrictions.

Radio Frequency Exposure Compliance: As a health protection measure, this device complies with the limits for exposure of the general public to electromagnetic fields in accordance with council recommendation 1999/519/EC. This device can be placed on the body avoiding prolonged use of it for more than 5 hours.

How to recycle your device properly: Disposal of certain electronic devices is regulated in some areas. Make sure you comply with local regulations and laws.

Additional Safety and Compliance Information: For additional information on safety, recycling and compliance or other important issues related to your device, do not hesitate to contact us through any of the available means of contact. Means of contact with: Email contact@pingaoculto.com, Call/WhatsApp +34 644 098 320.

Limited Warranty: All official brand items PingaOculto have 2 year minimum warranty. This guarantee may be extended or reduced depending on the country where the sale takes place, as is the case by law in Spain where it is extended to 3 years as established by Decree-Law 7/2021 with respect to the Guarantee on the Sale of Goods. of consumption. We reserve the right to deny the guarantee of a product if improper or negligent use by the client is verified, similar to those reflected in: https://www.pingaoculto.es/garantias-y-devoluciones/ If you need to contact us due to a failure, you can do so by email: contact@pingaoculto.com or by Call/WhatsApp: +34 644 098 320.

Find Out More

Do you want to contact us?

follow us on

<img decoding="async" draggable="false" role="img" class="emoji" alt="📋" src="https://s.w.org/images/core/emoji/13.1.0/svg/1f4cb.svg" title="Instrucciones Pinganillo Nano V7 + Vip Pro UltraMini 1" data-eio="l"> Instructions Earpiece Nano V7 Vip Pro UltraMini

What is a Nano Earpiece?

What is a Vip Pro UltraMini Earpiece?

How does the Nano Earpiece and Vip Pro UltraMini work?

Is the Nano Earpiece and Vip Pro UltraMini Safe?

Technical characteristics

Kit Contents

Instructions

Step 0 - Original Product PingaOculto

Step 1 - Remove SIM PIN Code

Step 2 - SIM Card Insertion and Power On

Step 3 - Earpiece Type

Step 4 - Using the Vip Pro UltraMini Earpiece Kit

Step 4.1 - Stack Introduction

Step 4.2 - Earpiece Operation Check

Step 4.3 - Kit Placement

Step 5 - Using the Nano Earpiece Kit

Step 5.1 - Kit Parts

Extractor Bar, Extractor Magnet and Earpieces

Step 5.2 - Test Function

Step 5.3 - Introducing Nano Earpiece

Step 5.4 - Kit Placement and Volume Adjustment

Step 6 - Multifunction, Microphone and Volume Buttons

Step 7 - Earpiece, Battery and Battery Removal

Step 7.1 - Removing the Nano Earpiece

Step 7.2 - Removing the Vip Pro UltraMini Earpiece

Frequent Problems

1 - Does not establish the call with the Collar

2 - Doesn't work

3 - I can't hear anything or very low

Extractor Bar, Extractor Magnet and Earpieces

4 - I only hear out of one ear / earpiece

5 - The button does not work or does not work as it should

6 - The integrated microphone does not work

7 - I can't extract the earpiece

8 - The Choke Collar has stopped working

9 - Low Autonomy

Security and Compliance

Instructions Earpiece Nano V7 Vip Pro UltraMini
