Wifi Spy Camera Instructions

Table of Contents

1 Wifi Spy Camera Instructions

Description

There are two versions available depending on the HD or 4K image quality. The 4K model has a battery life of approximately 1 hour and the HD model approximately 3 hours.

The kit can be purchased with a portable wifi router or with a vip pro spy headset.

There are two versions available depending on the HD or 4K image quality. The 4K model has a battery life of approximately 1 hour and the HD model approximately 3 hours.

The kit can be purchased with a portable wifi router or with a vip pro spy headset.

Technical characteristics

The Wifi Spy Camera has a very small size that allows it to be hidden in any item of clothing or accessory using the included buttons and fixing pieces.

Remote viewing and recording in HD or 4K quality, perfect to see a document or computer screen.

The lens allows adjust focus manually between a distance of 5 centimeters to focus on the environment.

The camera connect to a wifi network and share the image on real time via Internet.

Allows local recording automatically just insert a microSD and turn on the camera.

The autonomy of the camera is 1 hour in the 4K version and 3 hours in the HD version thanks to the integrated 500 mAh battery.

Kit Contents

1 – Hidden Wifi Spy Camera

2 – 2 x Button Kit

3 – 2 x Fixing Pieces

4 – USB charging cable

5 – 5V/1A Charger

+Router

1 – Portable Wifi router

2 – Battery 3000 mAh

3 – NanoSIM-MicroSIM Adapter

4 – TypeC-USB charging cable

+ Spy Earphone

1 – Vip Pro Bluetooth Inductor Piece

2 – Vip Pro Headset

3 – 2 337/SR416SW Batteries

4 – USB charging cable + EU charger

Instructions

Step 0 - Original Product PingaOculto

Check that it is a original product of PingaOculto checking that the brand that appears on the cards included with the product is the same as the one in the image.

If you have doubts about whether the product is original, you can contact us by attaching an image and we will verify it. Contact us via: WhatsApp +34 644 098 320 o Email.

Select the instructions of the version or accessory you want to check:

Step 1 - Instructions HD Wifi Spy Camera

Es very important never bend the camera cable more than 90 degrees nor twist it, otherwise The internal connectors will be damaged, causing screen failure. Do not pull sharply on the cable of the camera or leave it hanging.

La camera can work in several ways ways:

Location: we must insert a microSD card into the camera. When the camera is on, it will automatically record both video and audio with the built-in microphone until it is turned off.
Remote with Wifi- The camera connects to the Wi-Fi network of a router or the Wi-Fi network created by a mobile phone with mobile data to transmit remotely over the Internet to anywhere in the world (no microSD required in this mode).

Select the Mode of Use

Step 2 - Local Mode

Step 2.1 - microSD introduction

To use the camera for local recording you just have to insert microSD card (maximum size 128GB and FAT32 format) before turning on the camera. Then, Press and hold the ON button for 5 seconds and the camera will start recording (if it doesn't turn on, charge it with the included cable and charger for at least 1 hour). It is recommended to do a test before using it, checking that it records correctly and verifying the free size on the card.

It is convenient download the app (links in next step), And connect to the wifi network created by the camera «CAMA-xxxxxx» to set it up and adjust its focus.

FOR turn it off, press and hold the ON/OFF button for 5 seconds until the blue LED turns off.

It is important to turn on the camera and wait the necessary time depending on the video size in minutes that we have configured. If we set it to record every 5 minutes and turn it on for 3 minutes, no video will be recorded as it has not reached 5 minutes of recording.

Step 3 - Remote Mode

Step 3.1 - Download Application

Download the JXL Cam App on your mobile by pressing the Android or App Store (iPhone) icon depending on the model of your device.

Step 3.2 - Application Permissions

When opening the app for the first time allow all required permissions.

It is important that the application has all the necessary permissions

Step 3.3 - Power and Status Lights

⚠ ATTENTION - It is normal for the camera to heat up with use.

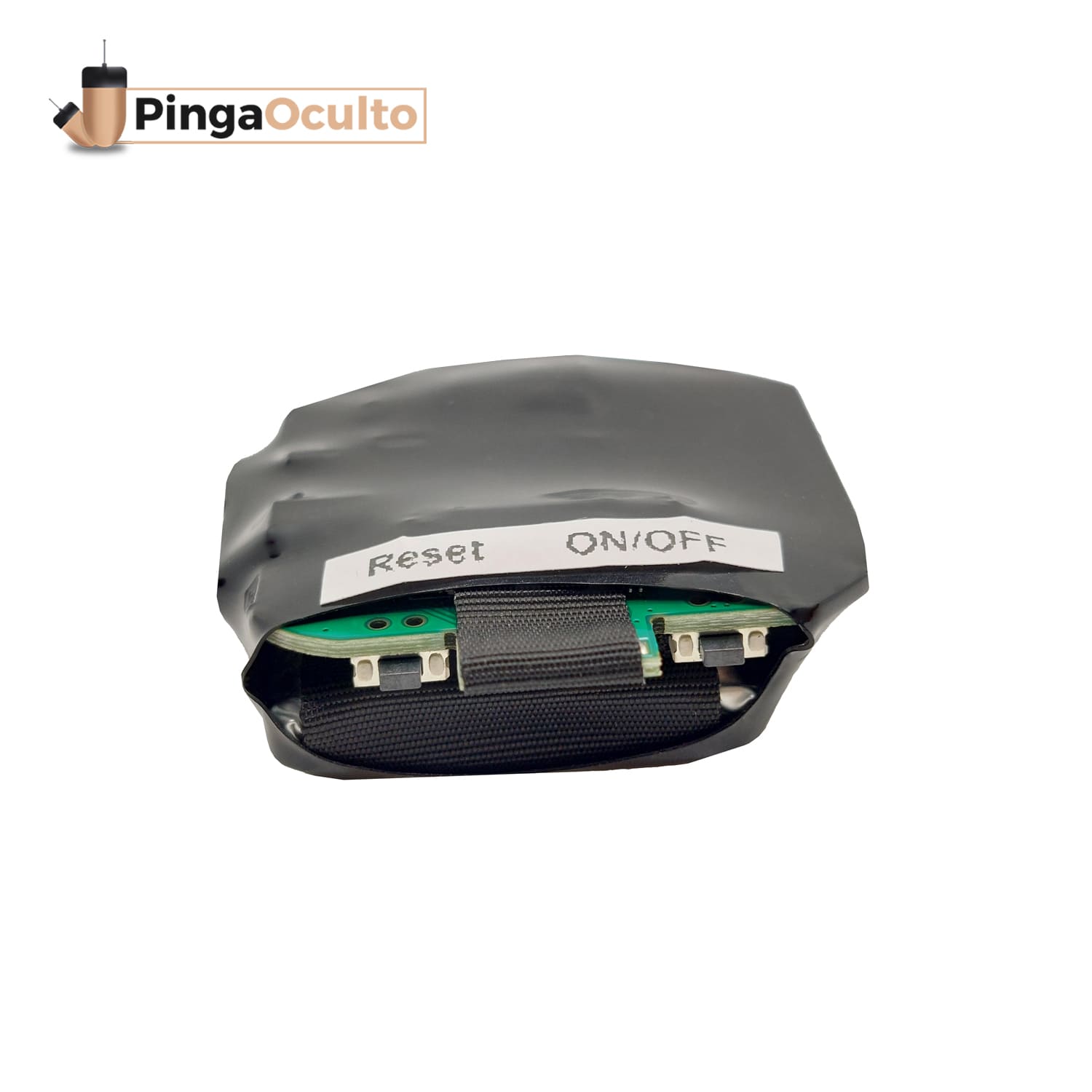

Press and hold the ON/OFF button for at least 5 seconds and wait 30 seconds for it to start.

El Blue LED will flash quickly. If it doesn't turn on, leave it charging for at least 1 hour.

The camera has a blue light and red light to indicate its status:

Fast flashing – Blue: Camera with Wi-Fi BEDxxxxx on and ready to setting.
Steady light – Blue: Camera configured and connected to the wifi network from the router or created by the mobile phone.
Steady light – Red: Loading. It will turn off when the charge is 100%.

Step 3.4 - Wifi Camera Connection

Open the WiFi settings of your mobile phone y connect to the WiFi network CAMAxxxxxx.

If you see a warning indicating If you want to keep the Wi-Fi connection even if you don't have internet, click on keep connection.

Step 3.5 - Camera View AP Mode and Focus Adjustment

If we have successfully connected to the wifi of the camera with name CAMAxxxxxx when opening the application the online camera will appear connected by Wifi Mode/AP Mode (If it does not appear, temporarily disable mobile data to force the Wi-Fi connection and restart the app). This way allow Connect to the camera using the Wi-Fi created by the camera, which has a range of 10 meters.

FOR see the camera click on the center of the image.

La Image by default will look out of focus and flipped. We have to adjust some parameters for its correct operation.

To flip the image horizontally and vertically we must click on the icons "Horizontal Flip" and "Vertical Flip" leaving them activated.

Now we must adjust manual focus. For this we must rotate the lens (yellow shaded piece in the image) holding the camera by the pink piece. You should not hold the camera by the cable. Depending on the direction of rotation, the focus:

Turn clockwise = Farthest
Counterclockwise rotation = Closest

Es It is important to leave it correctly adjusted from a distance on which you want to focus the folio, computer screen or environment.

Step 3.6 - Microphone

Click on the speaker icon to listen to the sound picked up by the camera's microphone. Remember to turn up the volume on your mobile and remove silent mode and restart the app.

Step 3.7 - Wifi connection

Open the main screen and click on «Wi-Fi settings«. Next, Select the wifi from the router or created by your mobile in the list (If you don't know how to create a Wi-Fi network with your mobile or you don't see the Wi-Fi network you want, check the section on frequent problems on this page.) and remember that it must be a 2.4Ghz Wi-Fi.

Enter the password for the router's Wi-Fi network and click on "Settings". In this step, our mobile phone, which is still connected to the camera's Wi-Fi (CAMAxxxxxx), it will communicate to the camera the Wi-Fi network to connect to.

Then the camera will turn off Wi-Fi (CAMAxxxxxx) and it will connect to the Wi-Fi network that we have communicated to it and in this step our mobile should automatically reconnect to the internet (wifi with internet or mobile data) to check if the camera has been set up correctly.

A timer will start and we have to wait for it to finish or the message “Next step” appears.

If the message "Camera setup failed, please set it up again«, check the common problems at the bottom of this page.

If "Next step", the camera has been configured correctly and the Blue LED on the camera will be solid without blinking.

Step 3.8 - Camera UID and Password

After completing this step, the camera will be configured. It is not necessary to configure it again if we do not change the Wi-Fi network. The moment we turn on the camera, it will connect to the Wi-Fi network that we have indicated and will begin to transmit live from anywhere in the world with internet.

After clicking on «Next step" can indicate the name of the camera or leave the default (Room) and set a camera password or leave the default (admin). Then click on «Next step«.

The camera will be configured and we can view it from anywhere in the world with internet, Remembering that The camera must always be close to the Wi-Fi network. to which it connects.

On the main screen will appear «Online” when the camera is on and connected to Internet. We can click on the image to view it. Remember that the stability of the image depends on the quality of the wifi network connection to which the camera is connected and the mobile internet connection from which we see the camera. It is normal that there are some cuts because image quality is prioritized over fluidity.

Step 3.9 - Share Camera Access

The camera can only be viewed on a mobile phone at the same time.

It is important to only keep the app open on a mobile. If it is open on another mobile phone, we will not be able to share or view it.

To share camera access On the main screen, click on the configuration icon of a toothed wheel and in «Share".He Generated QR includes the UID or unique identifier from our camera. Must save and share it along with the camera password which was set in the previous step.

The other person to whom we have shared the QR code and password of the camera, while we keep the camera on and the app closed on the mobile where we configure the camera, must install the app, open it and grant all requested permissions.

On the main screen of the application:

Click on the + button in the upper right corner.
Select "Add cameras manually«.
Scan the QR Code.
Indicate the camera password.
Click on «Next step«.

The camera will be configured and we can view it by clicking on the image of the camera on the main screen of the app.

Step 3.10 - Display Options

Movement Alerts
Sound
Image/Capture
Video
Fullscreen
Resolution Adjustment
Flip Image Horizontally
Flip Image Vertically
Blue LED On/Off
Night vision
Reproduction
battery level
Settings
Date and Time

Step 3.11 - Buttons and Fixing Pieces

ATTENTION - It is very important not to bend the camera cable excessively.. Doing so will break connections and stop streaming video.

There are multiple ways to hide the camera in the clothes. The most common is on the sleeve, on a sweatshirt, jumper or shirt or in the neck concealed in a button.

Remember you can gesture to show paper or computer screen and that the other person who is viewing the camera remotely take a screenshot so that it is not necessary to hold the gesture for a long time.

The kit includes a garment fixing piece that must be sewn to the garment.

On the garment or accessory we must make a small hole where the lens is located The best sites are usually on the sleeve, on the neck or on the chest.

⚠ It is very important DO NOT pierce the camera cable when sewing it or it will be damaged and will be out of warranty.

If you don't know how to sew it You can look for a tutorial on YouTube on how to sew a 4-hole button. Use a thread of the color of the article of clothing so that it is hidden.

The buttons included can be glued to the camera with double-sided tape, with glue or similarly sewn to the fixing piece.

⚠ It is very important DO NOT pierce the camera cable when sewing it or it will be damaged and will be out of warranty.

If you don't know how to sew it You can look for a tutorial on YouTube on how to sew a 4-hole button. Use a thread of the color of the article of clothing so that it is hidden.

Step 3.12 – Power Off, Charge and Reset

To turn it off, Press and hold the ON/OFF button for at least 5 seconds until the blue light goes out.

Charge the camera only with the included charging cable and charging plug or with a charger of 5 V and 1 A maximum to avoid damaging the battery. The module emits a red light during charging. When charged, the red light will turn off automatically. Charging time is approximately 2-3 hours. The Camera can be used while charging, but it is not recommended because it reduces battery life.

FOR reset camera from the factory you must first hold down the reset button for 5 seconds while the camera is on and then wait at least 30 seconds.

Step 4 - 4K Wifi Spy Camera Instructions

La camera can work in several ways ways:

Location: we must insert a microSD card into the camera. When the camera is on, it will automatically record both video and audio with the built-in microphone until it is turned off.
Remote with Wifi- The camera connects to the Wi-Fi network of a router or the Wi-Fi network created by a mobile phone with mobile data to transmit remotely over the Internet to anywhere in the world (no microSD required in this mode).

Select the Mode of Use

Step 5 - Local Mode

Step 5.1 - microSD introduction

It is convenient download the app (links in next step), And connect to the wifi network created by the “HW-xxxx” camera to set it up and adjust its focus.

FOR turn it off, press and hold the ON/OFF button for 5 seconds until the blue LED turns off.

Step 6 - Remote Mode

Step 6.1 - Download Application

Download the HDCameraPro app on your mobile by pressing the Android or App Store (iPhone) icon depending on the model of your device.

Step 6.2 - Application Permissions

When opening the app for the first time allow all required permissions.

It is important that the application has all the necessary permissions

Step 6.3 - Powering the Camera and Status Lights

⚠ ATTENTION - It is normal for the camera to heat up with use.

Press the ON/OFF button once. If it doesn't turn on, leave it charging for at least 1 hour.

El Blue LED will turn on and then green will start flashing*.

*If the green light does not flash, it will not be possible to configure it. To reset the camera, if necessary, we must insert the reset clip for 5 seconds with the camera on. Then wait 15 seconds for the process to finish.

The camera has a blue, green and red light to indicate the camera status:

Blue solid first, and Green flashing: camera on, wifi HW-xxxx active and ready to configuration or connection AP/Wifi mode.
Steady green light: Mobile connected to the HW-xxxx wifi network to configuration or display in ap/wifi mode.
Flashing Blue and Green Light: camera searching for the wifi network it has been configured to e trying to connect.
Steady Blue and Green Light: Camera configured and connected to the Wi-Fi network from the router or created by the mobile.
Steady red light: Loading. It will turn off when the charge is 100%.

Step 6.4 - Wifi Camera Connection

Open the WiFi settings of your mobile phone y connect to the WiFi network HW-xxxx.

If you see a warning indicating If you want to keep the Wi-Fi connection even if you don't have internet, click on keep connection.

Step 6.5 - Camera View AP Mode and Focus Adjustment

If we have successfully connected to the wifi of the camera with name HW-xxxx When we open the application the camera icon will appear connected by Wifi Mode/AP Mode (If it does not appear, temporarily disable mobile data to force the Wi-Fi connection and restart the app). This way allow connect using the wifi created by the camera, which has a range of 10 meters.

FOR see the camera click on the center of the image. The green light will be solid without flashing.

Turn clockwise = Farthest
Counterclockwise rotation = Closest

Es It is important to leave it correctly adjusted from a distance on which you want to focus the folio, computer screen or environment.

Step 6.6 - Microphone

Click on the speaker icon to listen to the sound picked up by the camera's microphone. Remember to turn up the volume on your mobile and remove silent mode to listen.

Step 6.7 - Wifi connection to the Router

Open the main screen y Click on the + icon in the upper right corner.

Then select “Equipment AP distribution network”.

Click on «Start» connecting" and then "Next«.

If Device not found appears, our mobile is not connected to the camera's Wi-Fi (HW-xxxx) or some permission has yet to be given in the app.

Then click on «Refresh" Y select from the list the wifi network of the router or created by a mobile (If you don't know how to create a Wi-Fi network with your cell phone or the Wi-Fi network you want does not appear, consult the section of frequent problems on this page) and remember that it must be 2.4Ghz Wi-Fi.

Enter the password for the router's Wi-Fi network and click on "Configure Wifi" and then in «Sure». In this step, our mobile phone, which is still connected to the camera's Wi-Fi (HW-xxxx), it will communicate to the camera the Wi-Fi network to connect to.

Then the camera will turn off Wi-Fi (HW-xxxx) and it will connect to the Wi-Fi network that we have communicated to it and in this step our mobile should automatically reconnect to the internet (wifi with internet or mobile data) to check if the camera has been set up correctly.

A timer will start and we must wait for it to finish or for the main application screen to appear.

If "configuration error«, check the frequent problems on this page.

If the Camera lights are solid green and blue without flashing and the main screen of the app appears, It has been configured correctly.

Step 6.8 - Password

It will be necessary to enter a password for the camera twice on the first display in a pop-up window that will appear. The password must have a minimum of 6 characters. after writing it Click on “Sure”.

The camera will be configured and we can view it from anywhere in the world with internet (P2P mode), Remembering that The camera must always be close to the Wi-Fi network. to which it connects.

Remember the stability of the image depends on the quality of the wifi network connection to which the camera is connected and the mobile internet connection from which we see the camera.

Step 6.9 - Share Camera Access

Click on the main screen of the app on the share icon and then in «Save the QR Code to your phone«. The QR code will have been saved in the mobile gallery.

El Generated QR includes the UID or unique identifier from our camera. Must save and share it along with the camera password which was set in the previous step.

The other person to whom we have shared the QR code and password of the camera, while we keep the camera on, must install the app, open it and grant all requested permissions.

On the main screen of the application:

Click on the + button in the upper right corner.
Select "Mobile phone scanning QR code…«.
Scan the QR Code.
Indicate the camera password.
Click on «Sure«.

The camera will be configured and we can view it by clicking on the image of the camera on the main screen of the app.

Step 6.10 - Camera Display Options

Play / Pause
Sound
Resolution Adjustment
Night Vision (On/Off/Auto)
Fullscreen
Image/Capture
Video
Gallery
Movement Alerts
Pinganillo Sound
Lights On/Off
Flip Image Vertically
Flip Image Horizontally
battery level
Connection Mode
Connection Quality, Signal Quality, Frames per Second
Chamber Name
Settings

Step 6.11 - Buttons and Fixing Pieces
